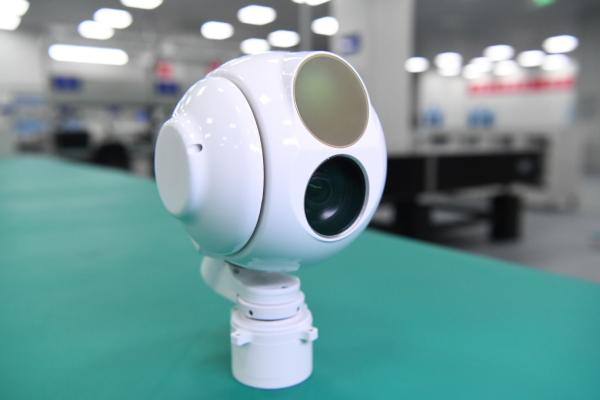

Dual sensor Electro-optical drone auto tracking PTZ night vision thermal camera system
TS01CT-N dual sensor electro-optical drone auto tracking thermal system, is a popular imaging camera ,support visible and IR detection and recognization.The weight is 950g,can be used various domains.
Functions
1. Provide the IR image for detection area
2. High precision visual axis stabilization function
3. With the capability of detection and recognition for ground target
4. Support search, tracking, lock, guiding, etc working ways
5. With character overlay, custom and display functions;
6. With self - check and fault diagnosis function
7. support target postion
Specifications
| EO sensor | Wavelength | 0.4μm～0.9μm |
| Resolution | 1920x1080 |
| Focal length | 4.3mm～129mm(30X) |
| FOV | 63.7°～2.3° |
| Video output | HD-SDI(1080P 30Hz) |
| Distance | PEOPLE:Detection 6km;Recognition 2km VEHICLE:Detection 15km;Recognition 8km |
| IR sensor | Wavelength | 8μm～14μm |
| Resolution | 640x512 |
| Focal length | 25mm/F1.0 |
| FOV | 17.4°～14° |
| Video output | HD-SDI(1080P 30Hz) |
| Distance | PEOPLE:Detection 0.7km;Recognition 0.2km VEHICLE:Detection 4.2km;Recognition 1km |
| Servo System | Rotating limits | 360º continuous Pan, Pitch: -110° ~+10 º |
| Angular accuracy: | ≤2mrad |
| Stablization accuracy | ≤100μrad(1σ)(2°/Hz,1°/Hz Swing) |
| Max.angular speed | ≥50°/s |
| Max. angular acceleration: | ≥90°/S |
| Tracking Functions | Motion speed: | 30pixel/frame |
| Target imaging contrast: | 8% |
| Target imaging pixel(Mini) | 4x3 pixels |
| Support | Anti -occlusion without loss of function |
| Interface | Communication
interface | RS422 x1(TTL optional) |
| Video output | Ethernet |
Mechanical Drawing
